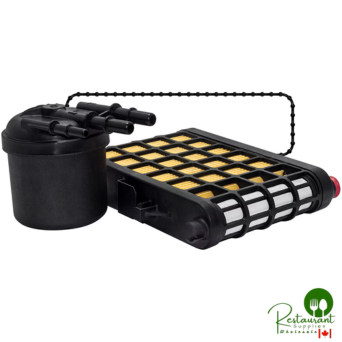

This high-performance Fuel Filter Kit is engineered for reliable fuel system protection in demanding automotive and heavy-duty applications. Designed for 2017–2022 Ford Super Duty trucks, it provides efficient filtration for optimal engine performance, extended component life, and dependable operation across commercial, industrial, agricultural, construction, marine, and transportation sectors.
Built with advanced filtration technology, the kit includes both a primary fuel panel filter and a secondary in-line fuel filter with return, delivering consistent fuel cleanliness and system efficiency. Precision construction ensures proper fitment and seamless integration into compatible systems.
| Specification | Details |
|---|---|
| Division | Engine Mobile Aftermarket Division |
| Industry | Automotive; Heavy-duty on-highway transportation; Commercial trucks and buses; Agriculture; Construction; Industrial; Marine |
| Technology | Filtration |
| Product Type | Fuel Filter Kit |
| Contains | Primary Fuel Panel; Secondary In-Line Fuel with Return |
| Panel Size | 9 1/16 x 7 9/16 x 1 3/4 in (230.1 x 192.3 x 44.5 mm) |
| Inlet Connection Size | 1/2 in |
| Outlet Connection Size | 1/2 in |
| Outside Diameter | 3 15/16 in (100.2 mm) |
| Length | 4 17/32 in (115.8 mm) |
| Gasket | 1 Furnished Gasket Included |
| Application | 2017–2022 Ford F-250 Super Duty, F-350 Super Duty, F-450 Super Duty, F-550 Trucks |
| Compatible Part Numbers | Ford HC3Z-9N184-B, HC3Z-9N184-C; Motorcraft FD4624, FD4625, FD4625AA |
| SKU# | 177045 |
