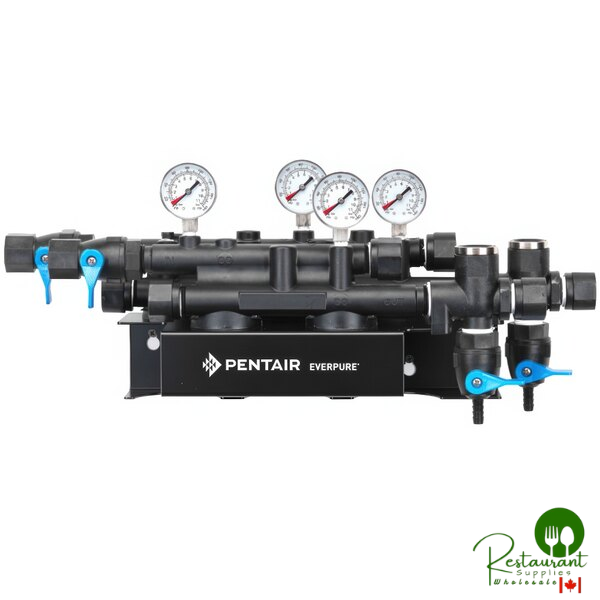

Everpure EV9278-91 QC71 DIO Parallel Manifold - 3/4" NPT Inlet, 1/2" Barb Outlet

SKU: 40985

Skip to product information
1 of 1

Regular price $1,957.99 / each
Regular price / each Sale price $1,957.99
Sale Sold out
Shipping calculated at checkout.
Everpure EV927891 DIO Manifold Dual Input/Output QC71 Sanitary Quick Change Manifold System Dual Water Quality System - Two Independent Filtration...
Currently there are peoples are currently looking at this product

Storage Instructions

Dry Goods: Store in a cool, dry place away from direct sunlight and moisture. Seal the packaging tightly after each use to preserve freshness.

Perishables: Refrigerate immediately upon receiving to maintain optimal freshness. Follow the specific storage temperature guidelines mentioned on the packaging.

Frozen Items: Keep frozen until ready to use. Follow the thawing instructions on the package for best results.

All products come with a "Best Before" or "Use By" date printed on the packaging. Please consume before this date to ensure the best quality.

For fresh or refrigerated items, use within [number of days] of opening.

Shipping & Returns

All orders are processed within 1-3 business days.

Orders are not shipped or delivered on weekends or holidays.

Standard Shipping: 5-7 business days. Rates will be calculated at checkout.

Express Shipping: 2-3 business days. Rates will be calculated at checkout.

Delivery delays can occasionally occur due to unforeseen circumstances.

View full details

Looking to buy a large amount of cases?

Get a Custom Quote

Everpure EV927891 DIO Manifold

Dual Input/Output QC71 Sanitary Quick Change Manifold System

Dual Water Quality System - Two Independent Filtration Paths
Product Specifications SKU #40985
Shipping Weight
12 lb.
Style
Sanitary Quick Change (QC71)
Type
Dual Input/Output Manifold
Water Inlet Size
3/4 Inches (Dual)
Quantity
1/Each
Inlet Connections
2 x 3/4" Male NPT
Outlet Connections
2 x 1/2" Barb
Cartridge Capacity
5 Total (2+3 Configuration)
Advanced Dual-System Design

Engineered for applications requiring two different water qualities simultaneously. Perfect for soda fountain filtration plus scale-inhibited water for ice makers or coffee equipment. Provides ultimate flexibility for customized water treatment solutions.

System Configuration

Input System 1
Feeds 2 filter cartridges
3/4" male NPT horizontal inlet
1/2" barb horizontal outlet
Independent shutoff valve
Dedicated pressure gauge
Input System 2
Feeds 3 filter cartridges
3/4" male NPT horizontal inlet
1/2" barb horizontal outlet
Independent shutoff valve
Dedicated pressure gauge

Key Features

This Everpure DIO manifold combines maximum durability, strength, and corrosion resistance with an integrated header design ideal for complex water treatment applications. The modular architecture allows easy system reconfiguration to accommodate changing water usage requirements or disinfection methods.

Each independent system includes built-in water shutoff valves and flushing valves on both outlets for simplified cartridge replacement. Pressure gauges provide immediate visual feedback on flow performance, enabling quick issue identification.

Installation Guidelines

For optimal performance, install the manifold vertically with cartridges hanging downward. Maintain 2½" clearance below filter cartridges for easy replacement. The integrated header design and quick-change system enable future expansion or reconfiguration without complete system disassembly.

Overall Dimensions
21⅜" Width
7¾" Depth
8¾" Height

System Flexibility

The dual-input design enables complete customization of water filtration strategies. Configure one system for chlorine reduction while the other handles chloramine filtration, or create separate treatment paths for different equipment types. This flexibility ensures optimal water quality for each specific application within your facility.

Built with commercial-grade materials and corrosion-resistant components, this manifold delivers reliable performance in demanding foodservice environments. The sanitary quick-change design minimizes maintenance downtime while ensuring consistent water quality across both independent filtration systems.
